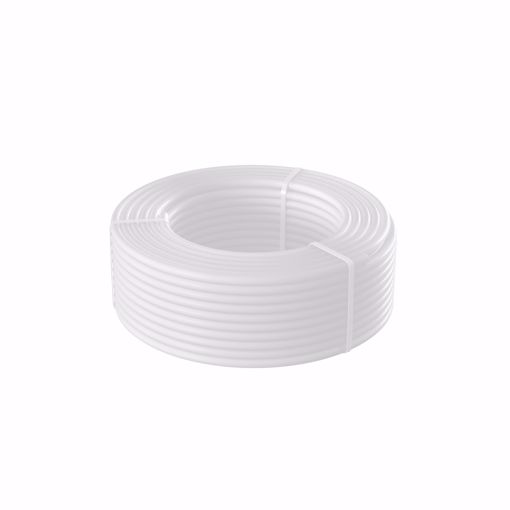

    1/2" x 100' Natural PEX-A Pipe for Potable Water, Coil

    SKU: F76782
    • Crosslinked polyethylene
    • Approved for use with F1960, F1807, and F2159 fittings
    • Easy installation
    • Corrosion resistant
    • Freeze resistant
    • Quiet operation
    • Approved for use in potable plumbing applications
    • NSF certified to ASTM F876/877 and CSA B137.5- 2017 / 2011a per NSF/ANSI 14, 61 and 372
    • ANSI/NSF14 and ANSI/NSF 61 approved
    • ASTM E84, ASTM F876, ASTM F877, ASTM F1960, and ASTM F2023 approved
    • CAN/ULC S101 and ULC S102.2 approved
    • AWWA C904 approved
    $93.80

    With its superior, durable crosslinking pattern, Jones Stephens' PEX-A pipe is highly flexible. It creates less kinking and requires less fittings compared to alternate piping methods, making installation simple and saving the installer time and energy. PEX-A pipe expands to absorb the sound of water hammer – providing quiet operation. Manufactured to the highest industry standards, PEX-A pipe is freeze resistant, corrosion resistant, and energy efficient. Approved for use with F1960 cold expansion fittings and F1807 or F2159 crimp fittings.

    • Crosslinked polyethylene
    • Approved for use with F1960, F1807, and F2159 fittings
    • Easy installation
    • Corrosion resistant
    • Freeze resistant
    • Quiet operation
    • Approved for use in potable plumbing applications
    • NSF certified to ASTM F876/877 and CSA B137.5- 2017 / 2011a per NSF/ANSI 14, 61 and 372
    • ANSI/NSF14 and ANSI/NSF 61 approved
    • CAN/ULC S101 and ULC S102.2 approved
    • AWWA C904 approved

    Country of Origin:Spain

    Material:PEX

    Size:1/2"

    OD:0.625"

    Max Temperature:203°F

    Pipe/Tubing Size:1/2"

    Max Pressure:160 psi

    Temperature Range:73°F - 180°F

    Tensile Strength:>2900 psi

    Working Pressure:100 psi

    Working Temperature:180°F

    Color:Natural

    Length:100'

    Wall Thickness:0.070"

    CEC Listed:No

    End Connections:Tube

    ANSI Standard:ANSI Standard:ANSI Standard:NSF/ANSI 14NSF/ANSI/CAN 61NSF/ANSI 372

    ASTM Standard:ASTM F876/877

    BAA Compliant:No

    CARB/OTC/LEED Compliant:No

    CEC Compliant:No

    cUL Listed:No

    Energy Star Compliant:No

    IAPMO Listed:No

    ISO Certified:No

    Lead Law Compliant:Yes

    MASS Approved:No

    NSF Certified:Yes

    NSF Standard:NSF Standard:NSF Standard:NSF 14NSF 61NSF 372

    SDWA Compliant:Yes

    UL Listed:No

    HAZMAT:No

    ORMD:No

    Products specifications
    Product PEX-A Pipe
    Style Coil
    Type Potable Water
    Color Natural
    Material PEX
    Size 1/2"
    Length 100'
    Wall Thickness 0.070"
