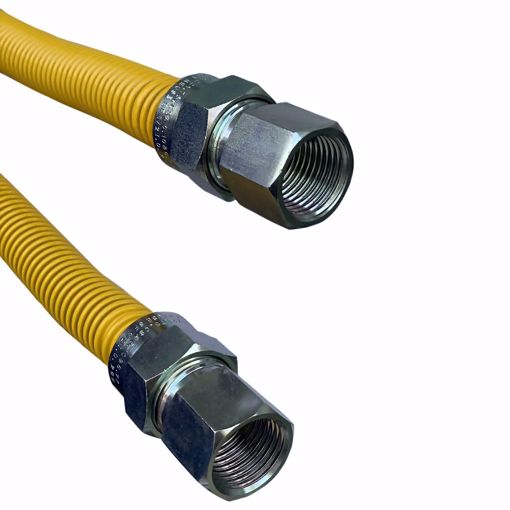

5/8" OD (1/2" ID) X 48" Gas Connector, Yellow Coated Corrugated Stainless Steel, 1/2" FIP X 1/2" FIP

• 106,000BTU (31,066)W
• Durable stainless steel 304 material
• Corrugation extends all the way to the fitting for increased tubing flexibility
• Quality flared end fittings create a metal-to-metal seal in critical applications
• 100% leak tested to ensure safety and quality for a product you can trust
• Corrosion resistant connectors add additional safety in highly corrosive environments or in areas where caustic chemicals are located
• Minimum fitting tightening torque (in-lb/N-M) 250 / 28.25, Maximum fitting tightening torque 520 / 58.75
• For proper product selection, use the ID and length of the line to locate the BTU rating

Country of Origin:China

Material:Stainless Steel

Size:1/2" x 1/2"

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

BTU:106,000BTU (31,066)W

ID:1/2"

OD:5/8"

Max Pressure:1/2 psi

Temperature Range:32 F - 212 F

Working Pressure:1/2 PSI

Working Temperature:32 F - 212 F

Approved Applications:Indoor & Outdoor Gas Appliances

Color:Yellow

Length:48"

Nut Material:Steel Q235

Coating:Yellow Anti-Corrosion Coating

Warranty:1 Year

AB100 Certified:N/A

End Connections:FIP

ANSI Standard:ANSI Standard:ANSI Z21.24ANSI Z21.75

CSA Listed:Yes

Lead Law Compliant:No

MASS Approved:Yes

NSF Certified:No

HAZMAT:No
