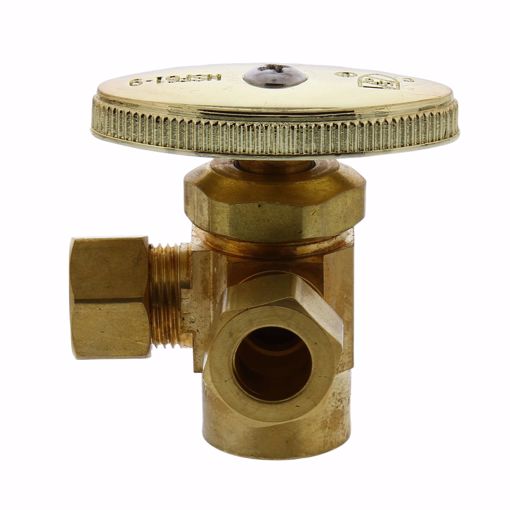

1/2" SWT x 3/8" OD Comp x 3/8" OD Comp Dual Outlet Angle Supply Stop Valve, Rough Brass

• Rough brass
• Multi-turn oval style handle
• Angle stop design typically used when water supply pipe comes from the wall
• Valve allows single inlet to have two simultaneously controlled outlets
• Meets or exceeds NSF/ANSI 61-2012, ASME A112.18.1-2018/CSA B125.1-18, Safe Drinking Water Act Section 1417(d) and Section 116875 of the California Health & Safety Code
• cUPC listed

Country of Origin:China

Handle Included:Yes

Handle Length:1.74"

Handle Material:Zinc Alloy

Handle Type:Oval

Material:Brass

# of Handles:1

Size:1/2" x 3/8" x 3/8"

Valve Body Material:Brass

Valve Body Style:Angle

Valve Included:Yes

Valve Operator:3-Way Handle

Valve Size:1/2" x 3/8" x 3/8"

Valve Stem Material:Brass

Valve Type:Angle Supply Stop Valve

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Working Pressure:125 psi

Working Temperature:40°F - 160°F

Color:Rough Brass

Turn Type:Multi-Turn

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:End Connections:SWTCompression

ANSI Standard:ANSI 61-2020: Q = 0.5

ASME Standard:ASME A112.18.1-2018

CEC Compliant:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:No

NSF Standard:NSF 61-2020: Q = 0.5

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN 61-2020: Q = 0.5
